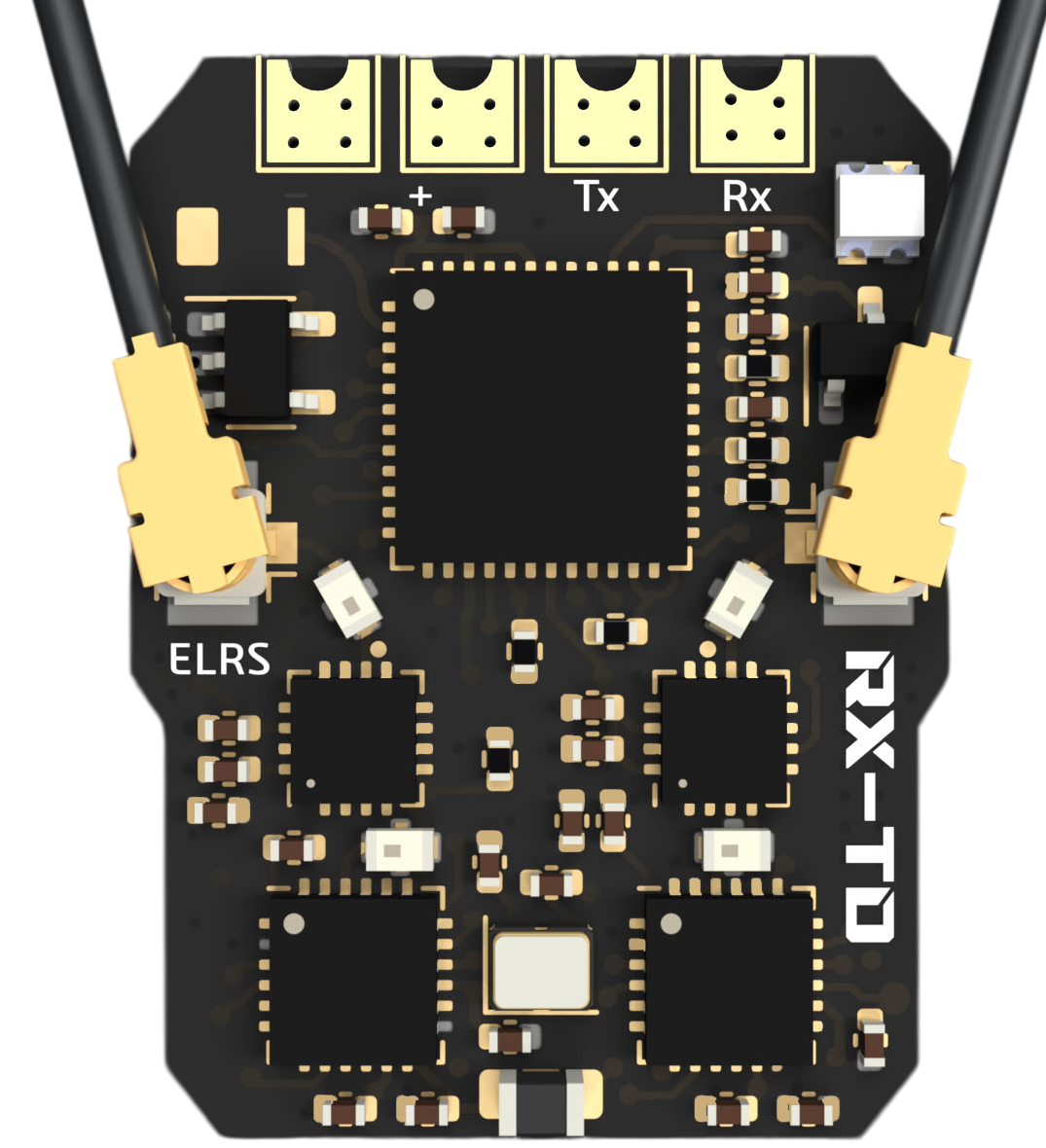

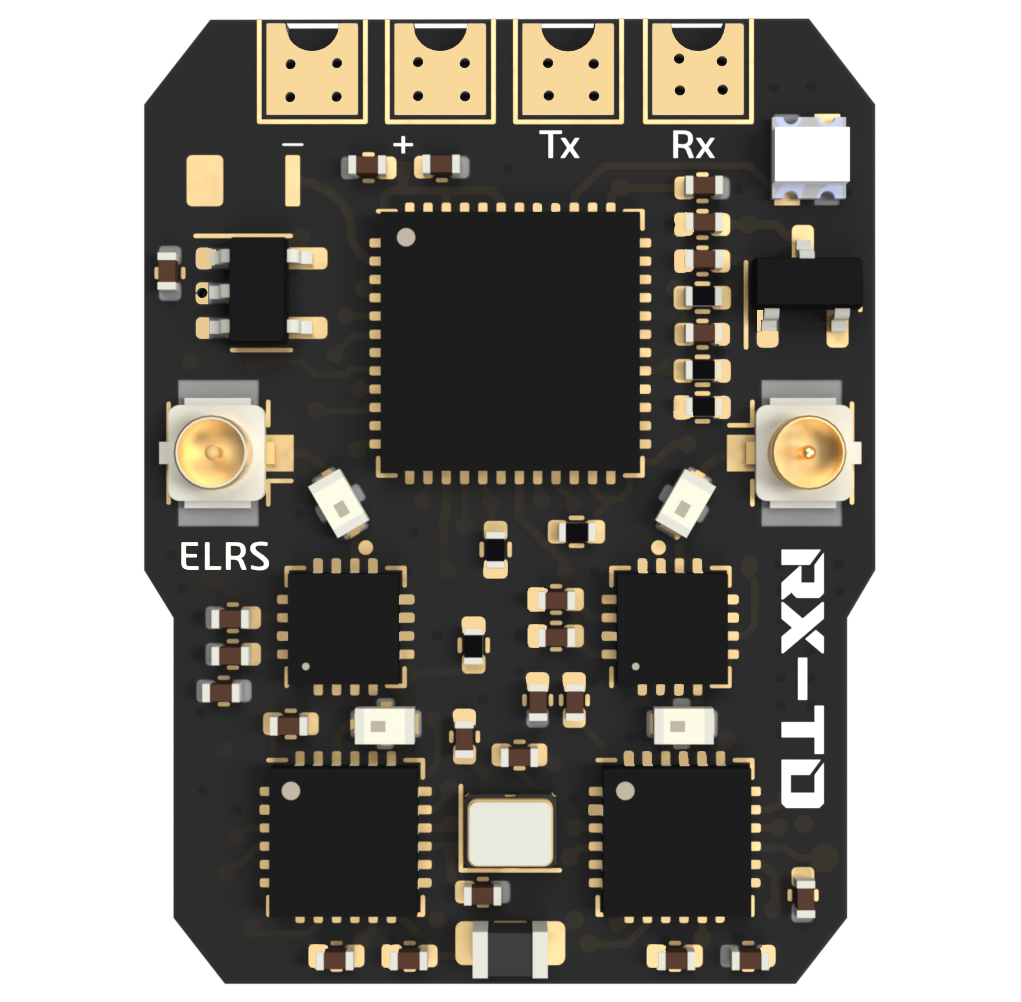

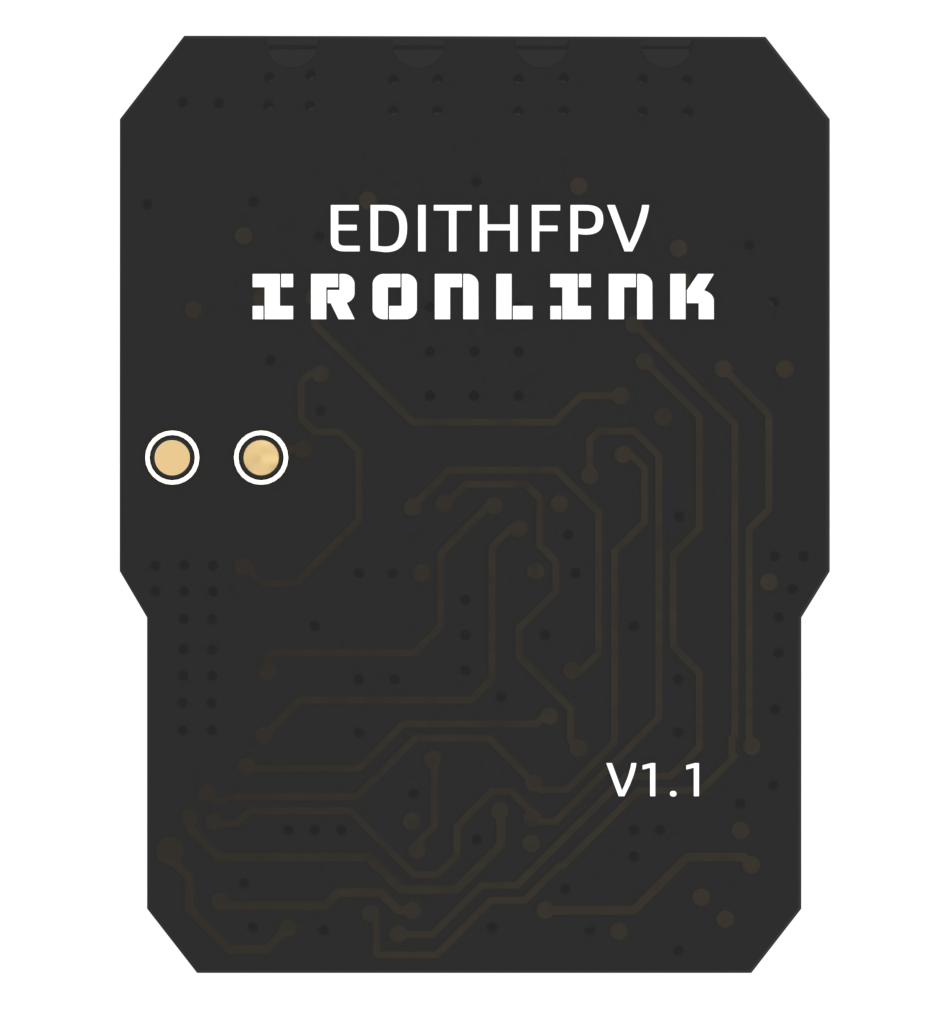

IronLink RX-TD
IronLink RX-TD
- Item : IronLink RX-TD Receiver
- MCU : ESP32
- RF Chip : SX1281 x 2
- Telemetry RF power : Max 2 x 100mw

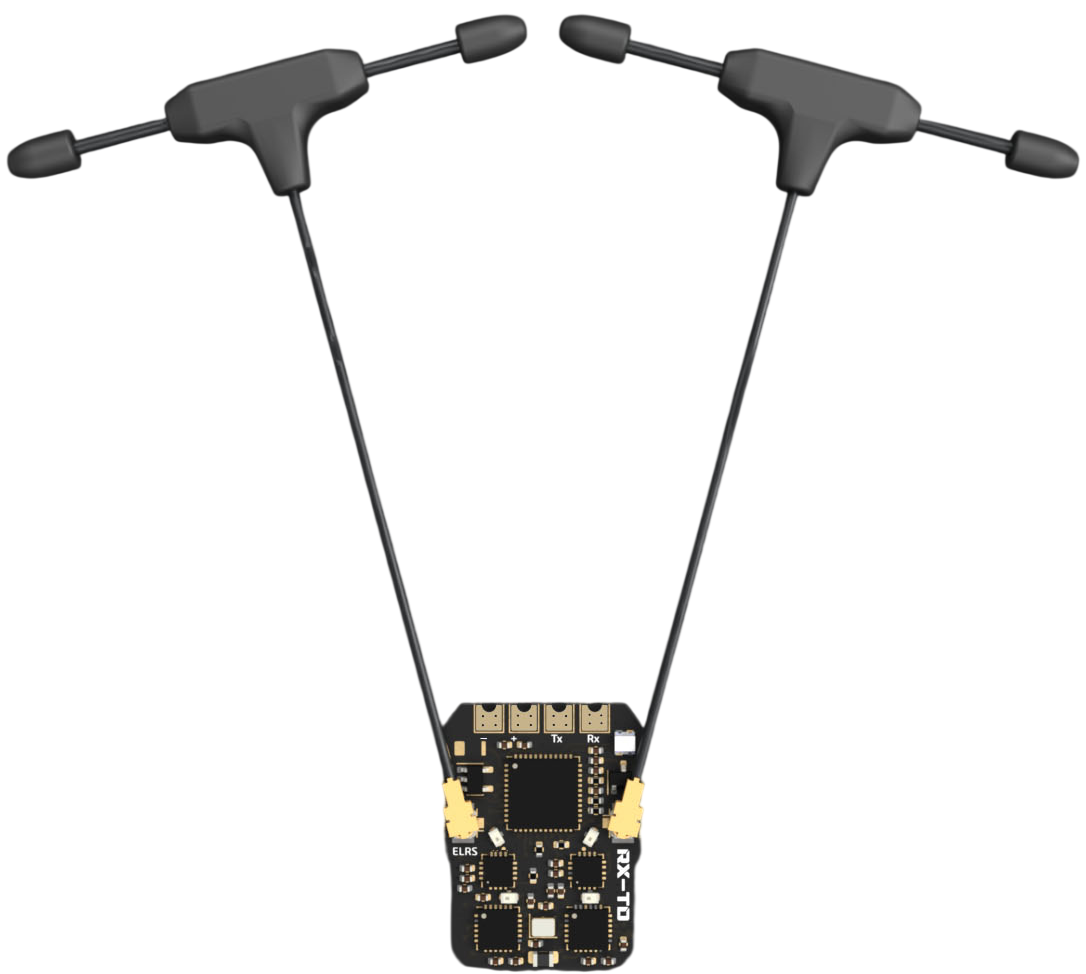

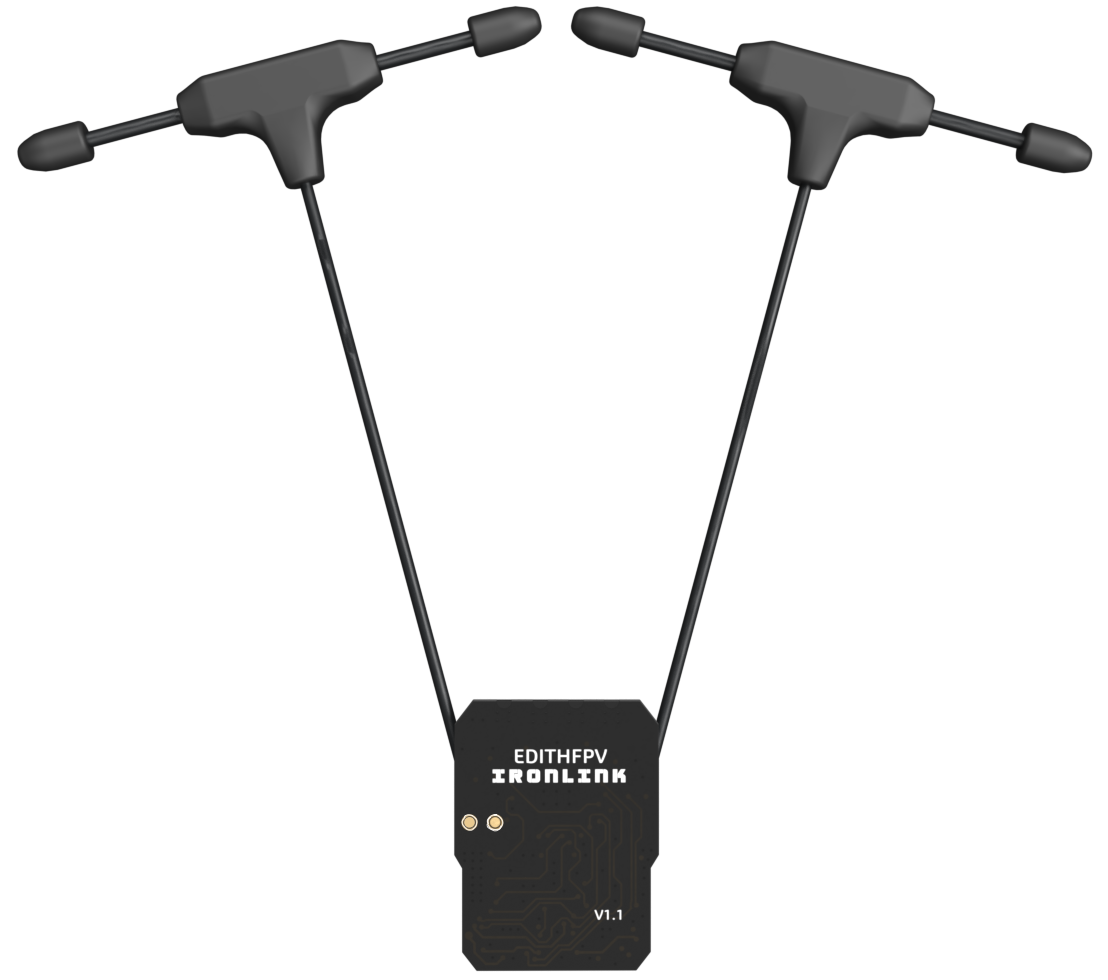

- Antenna : 65mm 2.4ghz T Antenna x 2
- Frequency Range : 2.4 GHz
- Working voltage : DC 5V
- Maximum Refresh Rate : 500Hz / F1000Hz
- Protocol : CRSF
- Weight : 1.69g (without antenna) / 4.35g (with antenna)
- Dimension : 26 x 20 x 3 mm
- Firmware Version : ExpressLRS v3.3.0 pre-installed
- FW Target : Edith IronLink RX-TD
- Extend Interface : UART
About IronLink RX-TD
The Ironlink RX-TD is a premium 2.4GHz ExpressLRS True Diversity Receiver engineered for pilots who demand uncompromising link reliability, ultra-low latency, and exceptional RF performance.
Featuring True Diversity reception and Gemini Mode support, it utilizes dual independent RF paths for simultaneous packet reception, significantly improving signal robustness and minimizing packet loss in challenging environments.
Optimized for FPV racing, freestyle, long-range, and professional UAV applications, the Ironlink RX-TD delivers stable telemetry, rapid response, and dependable control from takeoff to landing.
Key Features
- Gemini mode ready.
- Efficient DC-DC Power architecture for stable performance.
- Industry leading SNR and RSSI performance
- High-Performance Reinforced Antenna Design
- UART Expansion Interface for Advanced Applications
- Dual 100 mW RF Telemetry Output
- Universal Compatibility with 2.4 GHz ExpressLRS Modules and Built-in ELRS Transmitters
