IRONNAV GPS WITH COMPASS GUIDE

F4 Flight Controller

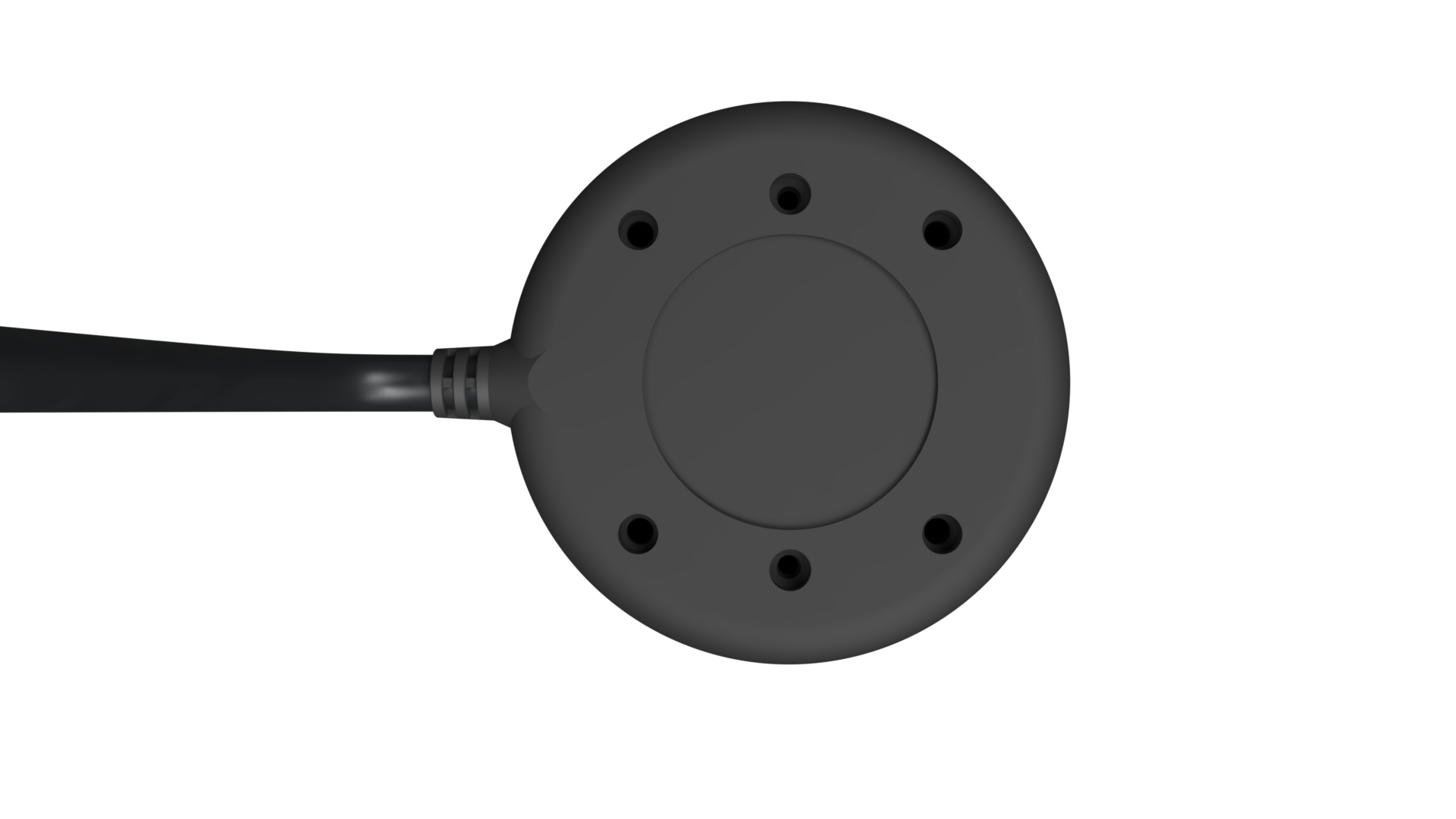

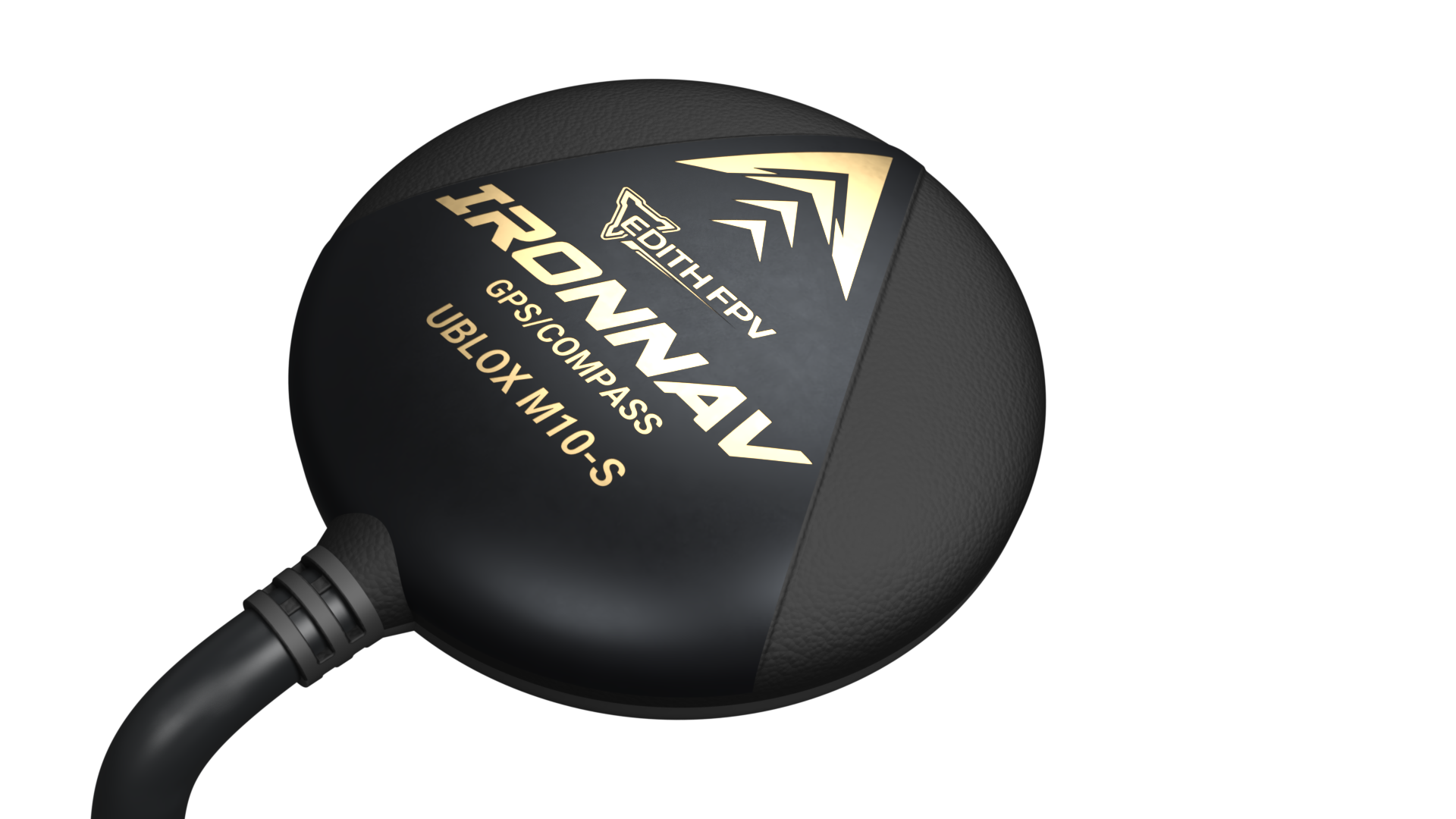

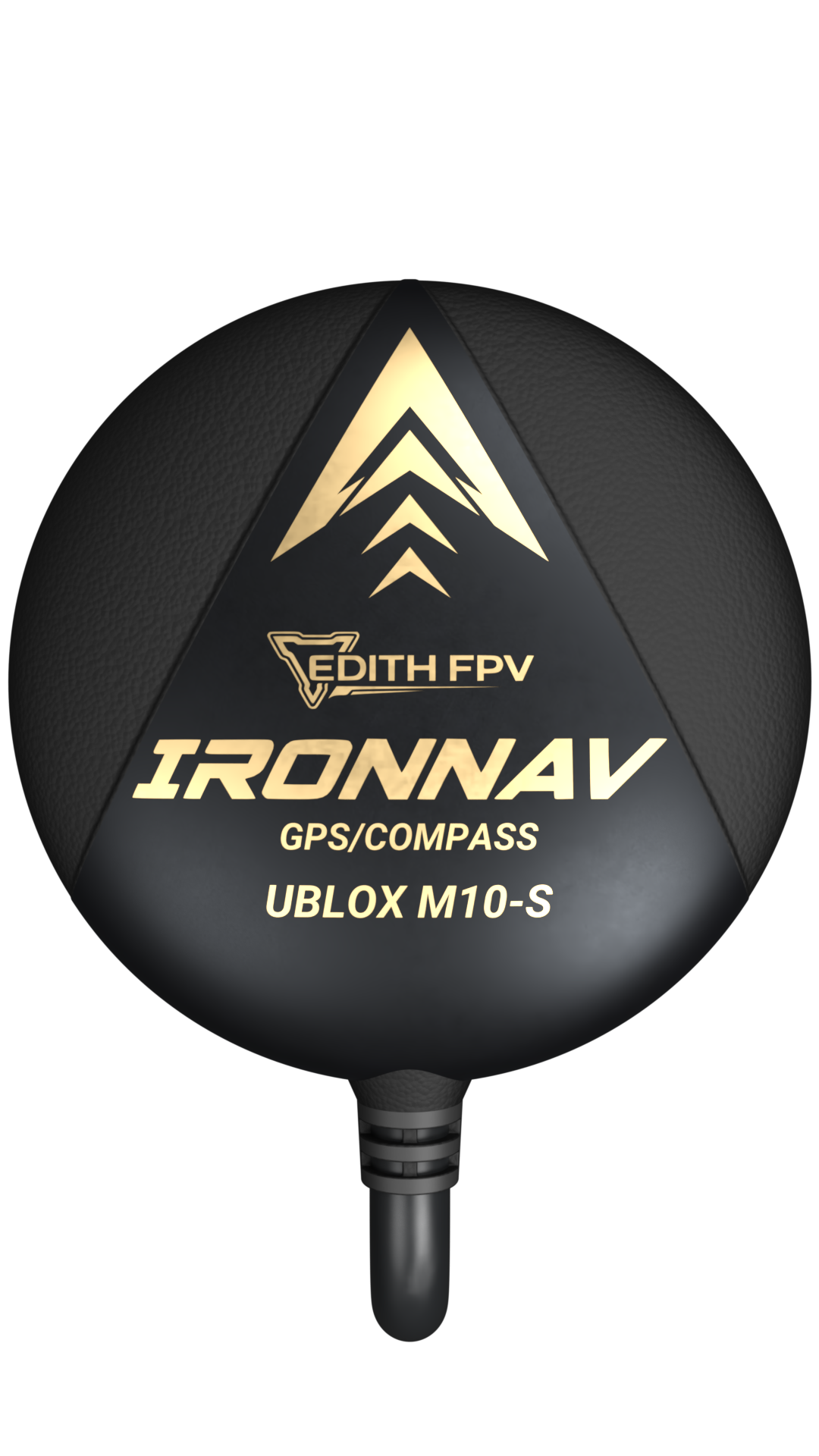

FrontAngleBack

Ironnav GPS/ Compass UBLOX M10-S

  • Advanced GPS Performance: Powered by the u-blox Max M10s receiver, supporting GPS L1, GLONASS L1, BDS B1, Galileo E1, SBAS L1, and QZSS L1 for global satellite coverage.
  • Instant Position Fix.
  • Compact, Lightweight, and Stable Multi-GNSS Connectivity.
  • High-Gain Ceramic Patch Antenna.
  • High-Precision Navigation.
  • Integrated 3-Axis Compass.
  • Lightweight 25×25 mm Form Factor (<6g)

About Ironnav

Ironnav is built around the high-performance u-blox MAX-M10S, delivering reliable positioning through concurrent access to major GNSS constellations such as GPS, GLONASS, Galileo, and BeiDou, along with support for QZSS and SBAS services. This multi-constellation capability helps maintain consistent satellite lock and stable navigation across varied operating conditions.

For heading and orientation, Ironnav integrates a QMC5883P compass, combined with a high-sensitivity ceramic antenna for strong signal reception. It supports both UART (u-blox protocol) and I2C interfaces, enabling straightforward integration with popular flight controllers and firmware including BetaFlight, iNav, and ArduPilot.

With a compact 25 × 25 mm footprint and a weight of under 6 grams, Ironnav is well suited for lightweight UAVs and space-constrained designs. It accepts a 3.3 V to 5 V power input and is optimized for efficient operation without sacrificing performance. Whether used for autonomous missions, mapping, or high-speed flight, Ironnav provides dependable and accurate navigation data.

The Ironnav GPS is a high-performance navigation solution designed for precision flight, autonomous missions, racing, and mapping applications. Powered by the u-blox MAX-M10S, it delivers reliable multi-GNSS positioning and accurate navigation even in demanding environments. Its plug-and-play, solderless design and simple serial interface enable quick and easy integration with UAV systems, reducing installation complexity while ensuring dependable performance.

Key Features

  • UBLOX M10 GPS module for high-sensitivity, low-power positioning.
  • Supports multiple GNSS constellations (GPS, GLONASS, Galileo, BeiDou) with QZSS and SBAS augmentation
  • Fast and reliable satellite acquisition with high sensitivity (integrated LNA + SAW filter)
  • Built-in QMC5883P 3-axis compass for accurate heading and navigation
  • High-gain RHCP ceramic antenna for improved signal reception
  • UART and I2C interfaces for GNSS and compass connectivity.
  • Compatible with BetaFlight, iNav, and ArduPilot flight controllers
  • Compact design with 3.3–5V input suitable for drones and embedded systems
