IronLink RX-D
IronLink RX-D
- Item : IronLink RX-D Receiver
- Type : ISM
- MCU : ESP8285
- RF Chip : SX1281
- Telemetry RF power : Max 100mw
- Antenna : 65mm 2.4ghz T Antenna x 2
- Frequency Range : 2.404 - 2.479 Ghz
- Working voltage : DC 5V
- Protocol : CRSF
- Firmware Version : ExpressLRS v3.0 pre-installed

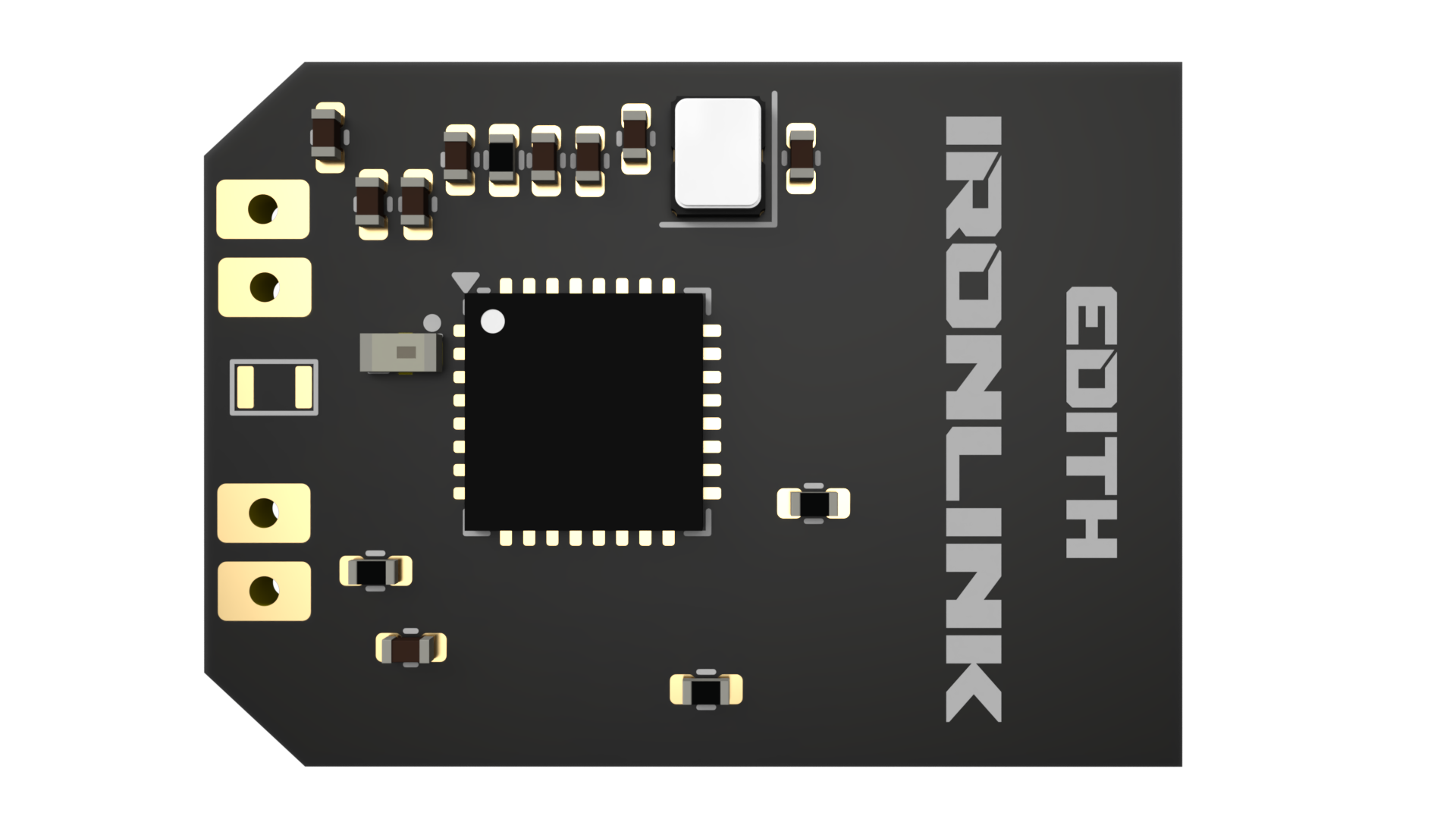

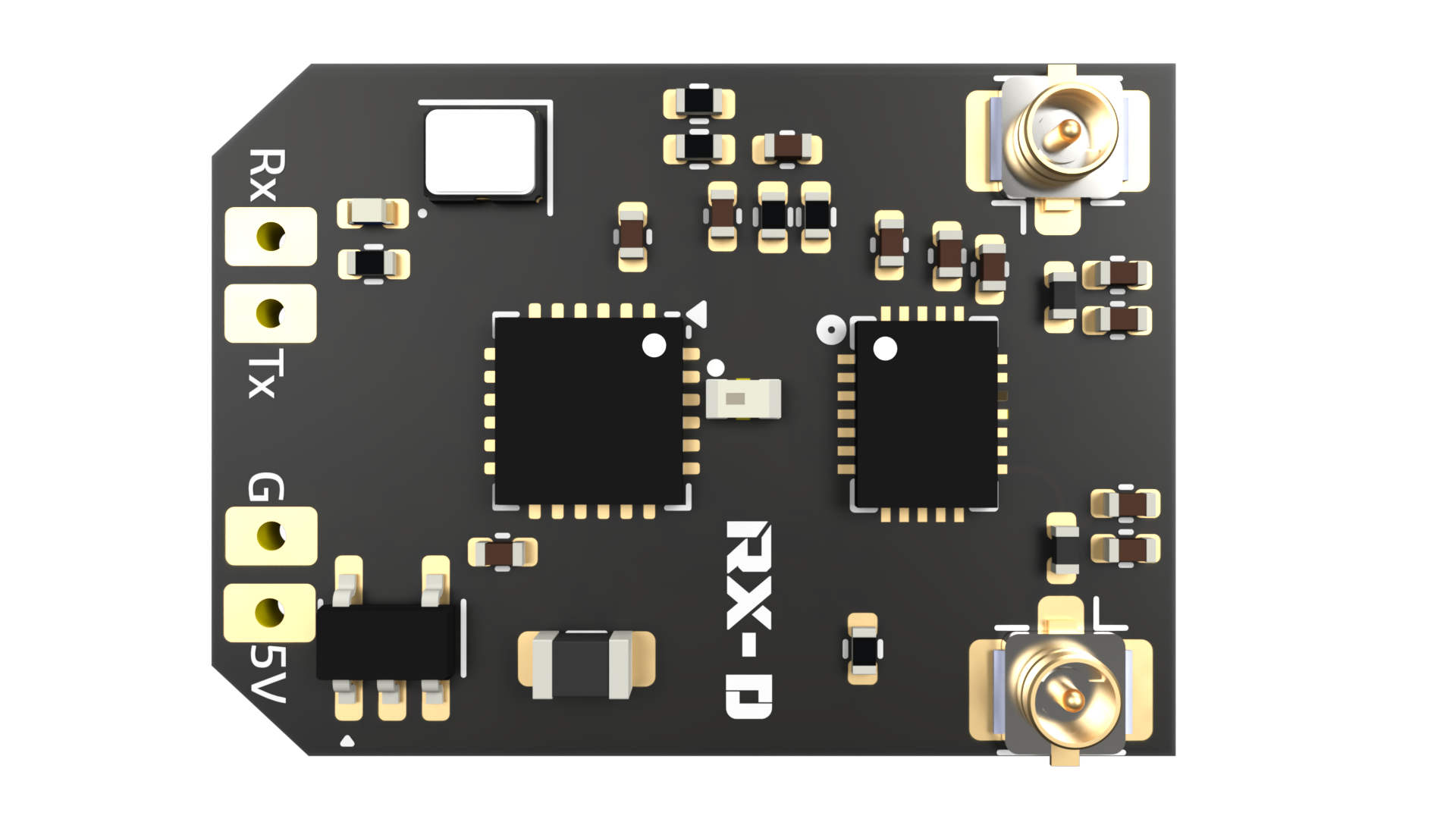

About IronLink RX-D
The IronLink RX-D is a high-performance ExpressLRS 2.4GHz diversity receiver engineered to provide dependable long-range control, ultra-low latency, and exceptional link stability for demanding FPV and UAV applications.
At its core, the receiver utilizes an ESP8285 microcontroller paired with a 2.4GHz RF transceiver, delivering the fast packet rates, robust telemetry, and responsive control performance that ExpressLRS is known for.
An integrated 2.4GHz front-end amplifier stage enhances receiver sensitivity and supports telemetry transmission power up to 100 mW, helping maintain a strong and reliable return link even at extended distances.
Built-in Wi-Fi connectivity allows seamless over-the-air firmware updates and configuration through the ExpressLRS WebUI, eliminating the need to disconnect or remove the receiver from the aircraft.
Despite its advanced capabilities, the IronLink RX-D maintains a lightweight and compact footprint, making it suitable for everything from racing quads and long-range platforms to fixed-wing aircraft and professional unmanned systems.
Key Features
- ExpressLRS 2.4GHz protocol support.
- True antenna diversity with intelligent antenna selection
- ESP8285 high-performance microcontroller
- High-sensitivity RF front-end for improved link robustness
- Up to 100 mW telemetry output power
- Integrated Wi-Fi for wireless firmware updates and configuration
- Ultra-low latency control with high packet rate support
- Compact and lightweight design for space-constrained builds
- Optimized for FPV, long-range, fixed-wing, and professional UAV applications
