Ironcore H7 Plus Autopilot

F4 Flight Controller
FrontAngleBack

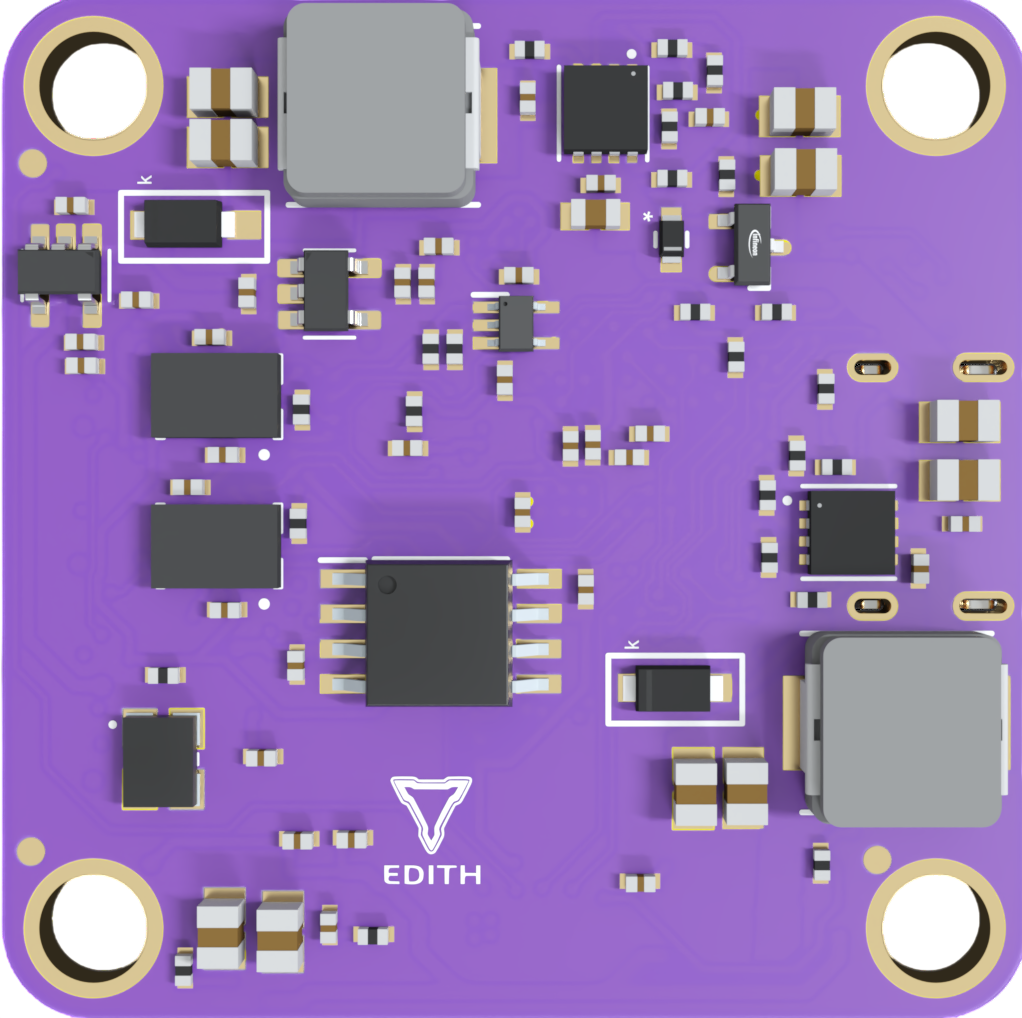

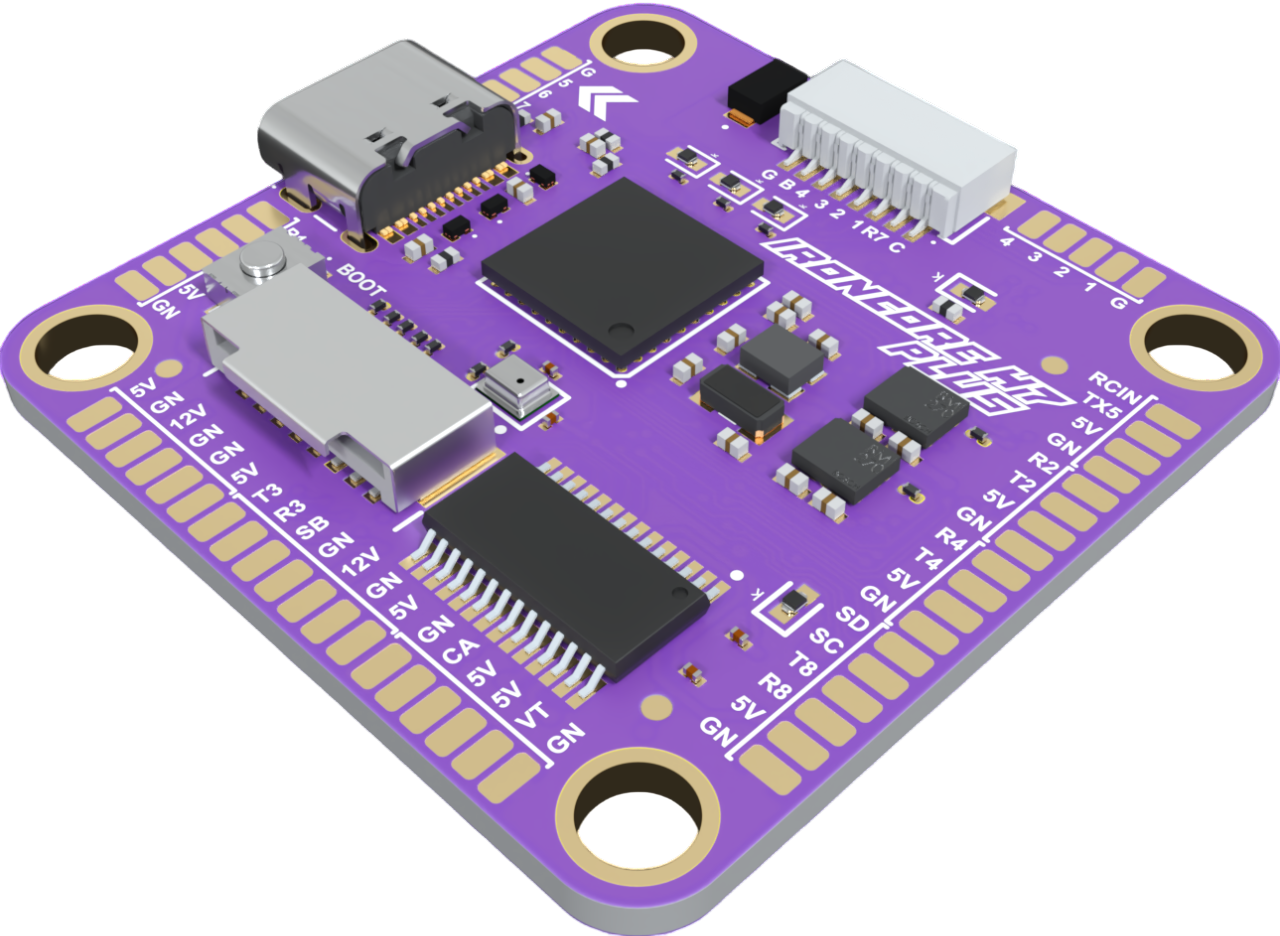

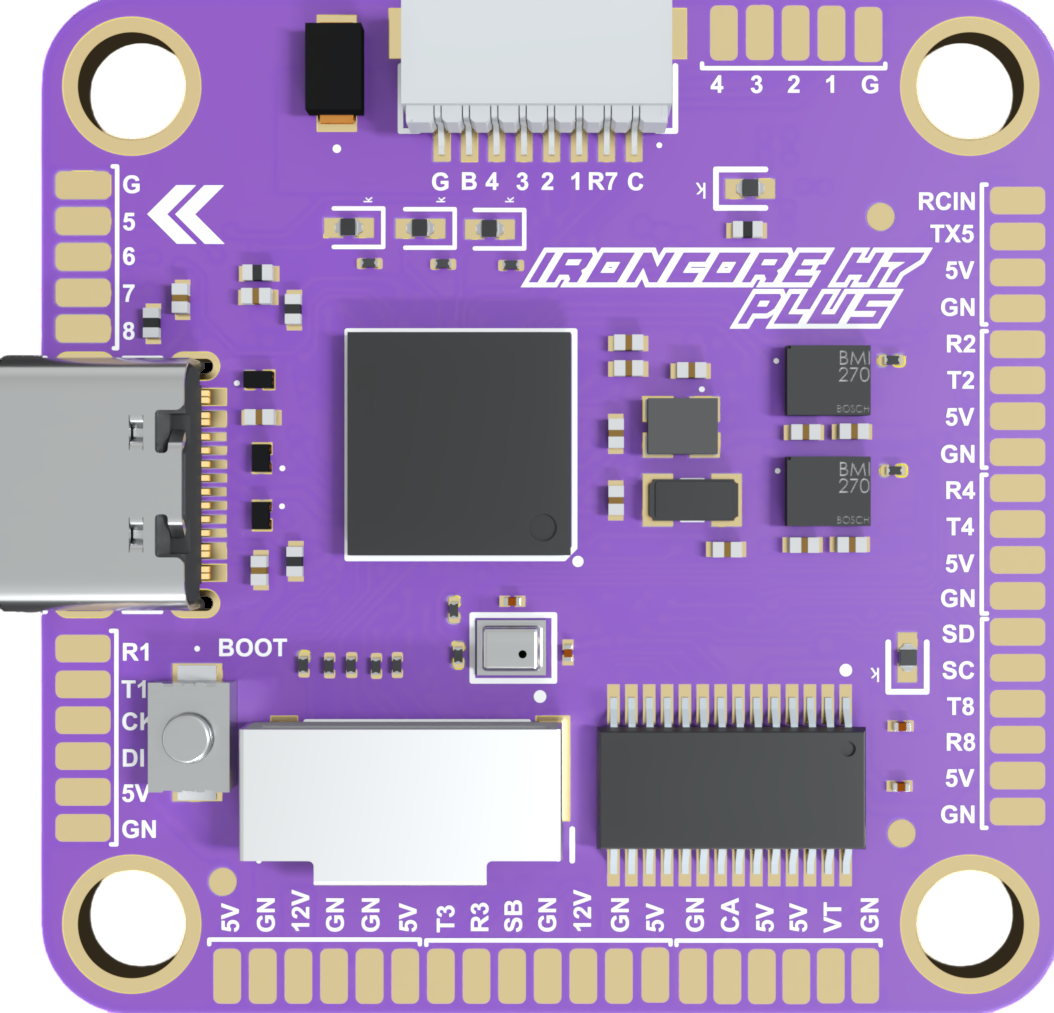

Ironcore H7 Plus Autopilot Flight Controller

  • MCU : STM32H743 (High Performance)
  • IMU : DUAL BMI270
  • Barometer : BMP280
  • Input Voltage : 3-8S LiPo
  • Firmware : Ardupilot
  • Mounting : 30.5 x 30.5mm
  • Advanced processing for AI & autonomy

About Ironcore H7 Plus Autopilot

The Ironcore H7 Plus Autopilot Flight controller, proudly Made in India is built for reliable UAV and FPV applications. Powered by the STM32H743 MCU, it delivers fast processing and stable flight controller with BMI270 IMUs, BMP280 barometer for accurate sensing and real-time flight data. Supporting Ardupilot.128 MB internal along with 4GB external Blackbox logging, , 7 UARTs, 8 motors/ servo outputs and 3-8S LiPo input, Ironcore H7 Plus is designed for versatile and high performance autonomous missions.

Key Features

  • High Speed STM32H743 MCU + Dual BMI270 IMU for redundancy.
  • Wide power input 3-8S LiPo.
  • Integrated AT7456E On-Screen Display.
  • Compatible with Mission Planner.
  • Pre-installed 128 MB Internal Blackbox and 4 GB external.
  • Perfect for FPV racing, cinematic shoots and Defence applications.
  • Multiple Peripheral Support.
  • Standard 30.5 mm X 30.5 mm mounting ( M4 hole size ).
  • ESD and reverse Polarity protection.
